SiliconGo PCIe SSD supports PCIe Gen3×4 and NVMe1.3 protocols, and supports PCIe Gen3×4 and NVMe1.4 protocols. High performance, small size, large capacity, and low power consumption make it the best embedded solution for industrial grade platforms. With the power-down protection function, it can ensure data security in the event of an unexpected power failure.

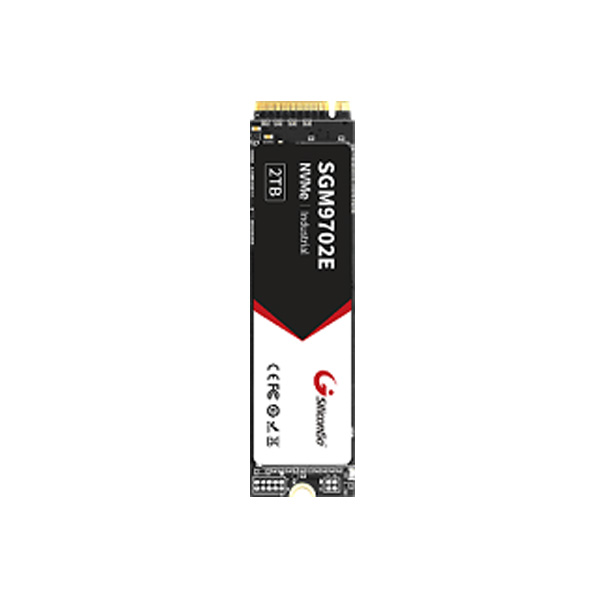

Model Name	SGM9702E
Interface	PCIe Gen3x4 32Gb/s
Flash Type	TLC
Capacity	800GB ~ 2TB
Form Factor	M.2 2280
Sequential R/W (MB/s, Max)	3500 / 1800
Random R/W  (IOPS, Max)	435,000 / 372,000
Max. Channels	8
Thermal Sensor (Y/N)	Y
DRAM (Y/N)	Y
Hardware Write Protection	N
Data Encryption	SM2/SM3/SM4
S.M.A.R.T (Y/N)	Y
Size (W x L x H mm)	22.0 x 80.0 x 3.5
Operation Temperature	0 ~ +70°C
Storage Temperature	-40°C ~ +85°C
MTBF	≥2,000,000 h
